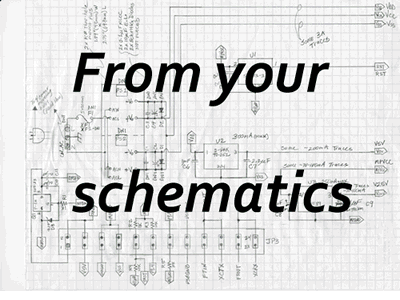

Create or
modify schematics
and design your PCB
layout using Protel DXP 2004, and now Altium Designer 6 ( also, if needed, P-CAD or ORCAD
). Provide schematics
in PDF for easy viewing. Experienced with Protel since 1998.
Key Benefits
- Save several thousand by not having to keep a CAD (or several) license
- Free up time for designing your circuit while we make it come to life
- Incorporate the design experience for NASA and several strenuous oil well drilling
environments
Capabilities
- Design recovery - If you have designs that were started in a CAD package
that you do not have, let me transfer it to PDF, or rebuild them in another
platform
- Create schematics that are ready for exporting the net-list to PCB
layout software

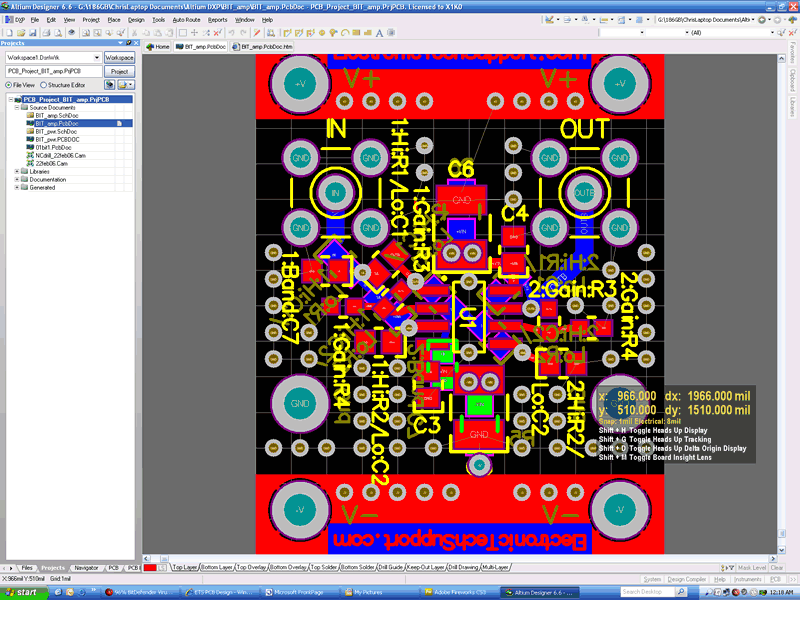

- Design your PCB layout with Gerber files ready for the PCB manufacture
-
|
